| Nama merek: | ITI-LINK |
| Nomor Model: | ITI-CTSF7A-016 |
| MOQ: | 1000 buah |
| Harga: | 50$-100$ |
| Waktu Pengiriman: | 15-45 hari |
| Ketentuan Pembayaran: | T/T |

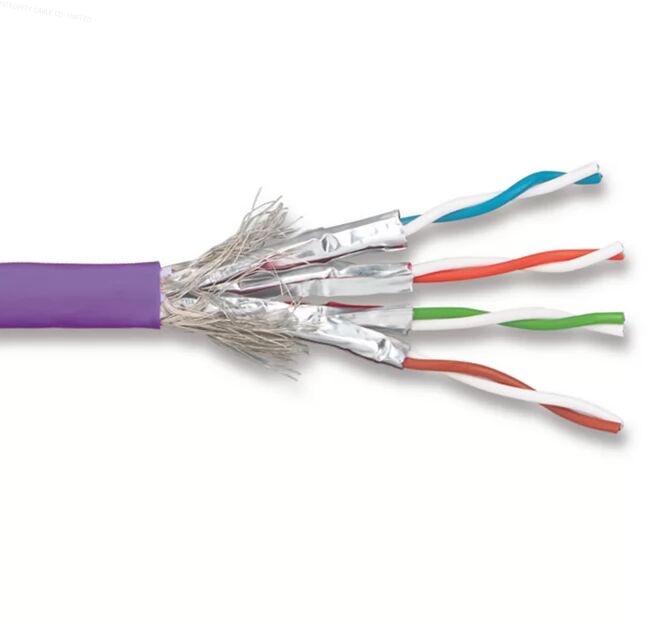

Built for demanding environments, this CAT7A, SFTP CAT7A Cable delivers reliable 10Gbps performance with superior EMI/RFI protection. The purple jacket makes identification easy in complex racks. Perfect as a Data Center Cable and Industrial Network Cable, the ITI-CTSF7A-016 combines Solid Copper conductors, shielded pair foil plus braid, and durable PVC/PE/LSZH outer materials for long-term stability.
| Construction Item | Description | Electrical Property |
|---|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C ≤ 9.5 Ω / 100m |
| Conductor OD | 23AWG | Resistance unbalance within a pair ≤ 2% |
| Insulation Material | PE Skin-Foam-Skin | Insulation Resistance at 20°C >1500 MΩ / 100m |
| Insulation OD | 1.45 ±0.01 mm | Mutual capacitance 5600 pF / 100m MAX |
| Pair Twist Lay & Direction | 1p: S=19.0 mm (28%) 2p: S=23.5 mm (31%) 3p: S=21.5 mm (33%) 4p: S=25.0 mm (36%) |
Characteristic impedance at 100MHz: 100 ± 15 Ω |
| Jacket Material | PVC, 50P, -20~75℃ | Dielectric Strength Test Voltage: 1.00KV DC or 0.7 KV AC for 1 min |
| Jacket Color | Purple |
