SFTP CAT7 CABLE 23AWG SFTP LSZH Orange 1000FT Data Center Ready

Name: SFTP CAT7 CABLE 23AWG SFTP LSZH Orange 1000FT Data Center Ready
Brand: Integrity Cable Co., Limited
SKU: ITI-CT7SF-015
Price: 75.00 USD
Availability: InStock

Brand Name:	ITI -LINK
Model Number:	ITI-CT7SF-015
MOQ:	1000pcs
Price:	50-100$
Delivery Time:	15-45 Days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Document:

CAT7 SFTP CABLE ITI Product...al.pdf

Transmission Speed:

10Gbps

Jacket Material:

LSZH

Frequency Range:

600 MHz

Length:

1000 Feet

Conductor Size:

23 AWG

Cable Type:

CAT7

Color:

Orange

Frequency:

600MHz

Packaging Details:

Wooden shaft packaging 40*26*20cm Outer box size：42*42*22cm

Supply Ability:

2000pcs/day

Highlight:

SFTP CAT7 cable 1000FT

LSZH orange CAT7 cable

data center CAT7 cable

Product Description

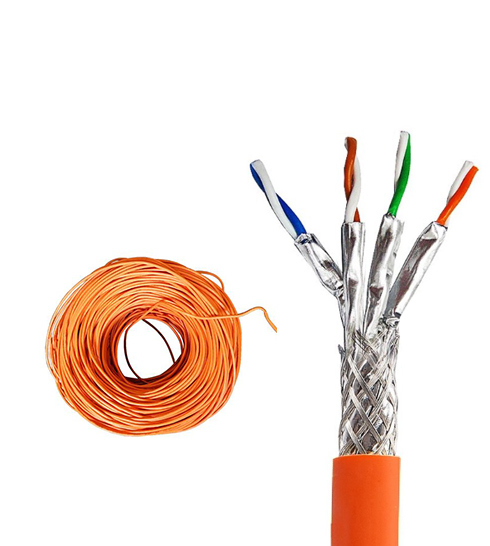

SFTP CAT7 CABLE 23AWG SFTP LSZH Orange 1000FT Data Center Ready

The INTEGRITY ITI-CT7SF-015 SFTP CAT7 Cable is a premium wholesale bulk CAT7 Ethernet LAN cable designed for professional data center cabling, enterprise backbone networks, industrial automation, cloud computing infrastructure, and high-speed commercial environments. Built with 23AWG oxygen-free copper conductors and advanced SFTP (shielded foiled twisted pair) double shielding, this CAT7 SFTP LSZH orange cable delivers 10Gbps transmission speeds with 600MHz bandwidth, making it ideal for mission-critical deployments.
Engineered with an LSZH (Low Smoke Zero Halogen) orange jacket, the ITI-CT7SF-015 CAT7 SFTP bulk cable meets IEC60332-1 fire safety compliance while offering superior environmental resistance, UV protection, and long-term durability. The orange color-coded jacket ensures fast and reliable network management in dense server racks, reducing patch panel errors and enabling efficient cable zoning for complex installations.

Key Features:

23AWG Oxygen-Free Copper Conductor: Ensures ultra-low attenuation and reliable 10Gbps+ connectivity across 100 meters.
SFTP Shielded Design: Double shielding with aluminum foil and braided mesh provides maximum protection against EMI and RFI interference.
600MHz Bandwidth: Exceeds standard CAT7 cable performance, supporting 10GbE, 40GbE, and 100GbE-ready infrastructure.
LSZH Orange Jacket: Meets IEC60332-1 safety standards, reducing toxic smoke emissions during fire events and improving safety in sensitive facilities.
1000FT Bulk Reel Packaging: Optimized for wholesale and large-scale installations, reducing installation time and cost in data centers, government networks, and enterprise projects.
High-Density Cable Management: Bright orange jacket simplifies cable identification and supports color-coded network segmentation.
Certified Performance: 100% tested for bandwidth, NEXT, return loss, and crosstalk to guarantee batch-to-batch consistency.

Technical Parameters:

Construction Item Description	Electrical Property
Conductor Material	Bare Solid Copper(elongation: 19-24%)
Conductor Resistance at 20°C	≤ 9.5 Ω / 100m
OD	23 AWG
Resistance unbalance within a pair	≤ 2%
Insulation Material	PE Skin-Foam-Skin
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V	>1500 MΩ / 100m
Mutual capacitance	5600 pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz	≤ 160 pF / 100m
Characteristic impedance at 100MHz	100 ± 15 Ω
Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min	No breakdown

Transmission Properties

Frequency (MHz)	Attenuation (Max) (dB/100m)	Propagation Delay (Max) (ns/100m)	Propagation Delay Skew (Max) (ns/100m)	Return Loss (Min) (dB on 100m)	NEXT (Min) (dB on 100m)	PS NEXT (Min) (dB on 100m)	EL-FEXT (Min) (dB on 100m)	PS EL-FEXT (Min) (dB on 100m)
4	3.74	552	25	23.00	78.0	75.30	78.0	75.00
8	5.24	547	25	24.50	78.0	75.0	75.90	72.90
10	5.86	545	25	25.00	78.0	75.0	74.00	71.00
16	7.41	543	25	25.00	78.0	75.0	69.90	66.90
20	8.29	542	25	25.00	78.0	75.0	68.00	65.00
25	9.29	541	25	24.30	78.0	75.0	66.00	63.00
31.25	10.41	540	25	23.60	78.0	75.0	64.10	61.10
62.5	14.88	539	25	21.50	75.50	72.40	55.10	55.10
100	19.20	538	25	20.10	72.40	69.40	54.00	51.00
150	23.56	537	25	18.90	69.80	66.80	50.20	47.20
200	27.74	536	25	18.00	67.80	64.90	48.00	45.00
250	30.97	536	25	17.30	66.40	63.40	46.00	43.00
300	34.19	536	25	17.30	65.20	62.20	44.50	41.50
600	50.10	536	25	17.30	60.70	57.70	38.40	35.40
800	58.92	535	25	17.30	58.90	55.90	35.90	32.90
1000	66.93	535	25	17.10	57.40	54.40	34.00	31.00

Applications:

Hyperscale Data Centers - Delivers 10Gbps/40Gbps backbone connectivity with 600MHz headroom, ensuring high-bandwidth data flow for AI clusters and large-scale cloud storage.
Financial Trading Networks - Provides sub-millisecond latency and stable SFTP CAT7 shielding to eliminate interference, critical for high-frequency trading.
Government & Defense Networks - Ensures fire-safe LSZH compliance and enhanced security, preventing eavesdropping and signal leakage in classified environments.
Enterprise & Industrial Applications - Supports large corporate campuses, industrial automation systems, and secure enterprise data networks with bulk 1000FT reels.
Cloud Computing Providers - Powers virtualized workloads with consistent high-speed CAT7 SFTP performance, while the orange jacket simplifies rack-level cable management.
