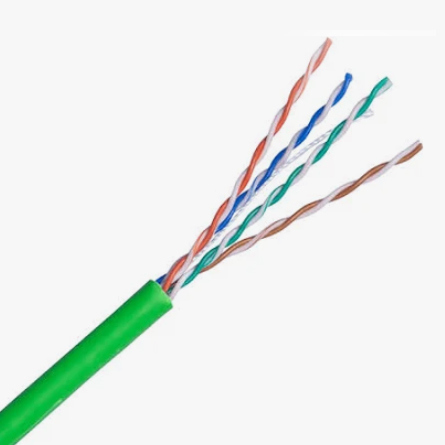

| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5U-028 |
| MOQ: | 1000pcs |
| Price: | $50-$100 |
| Delivery Time: | 15-45Days |
| Payment Terms: | T/T |
| Construction Item Description | Electrical Property | ||
|---|---|---|---|
| Conductor | |||
| Material | Bare Solid Copper (elongation: 19 ~ 24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| OD | 24 AWG | Resistance unbalance within a pair | ≤ 2% |
| Insulation | |||
| Material | FEP DAIKIN NP-101 E79842 | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m |
| OD | 0.90 ± 0.01 mm | Mutual capacitance | 5600 pF / 100m MAX |
| Average THK | 0.20 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m |
| Color |
1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | ||
| Pair Twist | Mechanical Property | ||
| Lay & Direction |
1p: S=20.0 mm (28%) 2p: S=17.5 mm (24%) 3p: S=22.0 mm (32%) 4p: S=15.5 mm (21%) |
insulation | elongation before aging | ≥ 250% |
| tensile strength before aging | ≥ 20 MPa | ||
| elongation after aging | ≥ 200 % | ||
| tensile strength after aging | ≥ 16 MPa | ||
| jacket | elongation before aging | ≥ 150 % | ||
| OD | / | tensile strength before aging | ≥ 13.5 MPa |
| Inner Assemble | elongation after aging | ≥ 125 % | |
| Lay | S=80 ± 5 mm | tensile strength after aging | ≥ 12.5 MPa |
| Direction | according to the drawing | Packing | |
| Filler | / | Inner Box | NA |
| OD | / | Master Carton | NA |
| Filler | Material | Ripcord | ||
| Construction | 300D | ||
| Outside Shield | |||
| Shield | / | ||
| Construction | / | ||
| Material | / | ||
| Coverage | / | ||
| Jacket | |||
| Material | PVC, MSC 1080 NAT E107947 | ||
| Hardness | 81 ± 3 | ||
| OD | 5.0 ± 0.2 | ||
| Average THK | 0.30 ~ 0.40 | ||
| Color | Green | ||
| Marking Color | Green | ||
| Marking | according to the customer's requirements | ||
