| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6OUT-026 |
| MOQ: | 1000pcs |
| Price: | $50-$100 |
| Delivery Time: | 15-45Days |
| Payment Terms: | T/T |

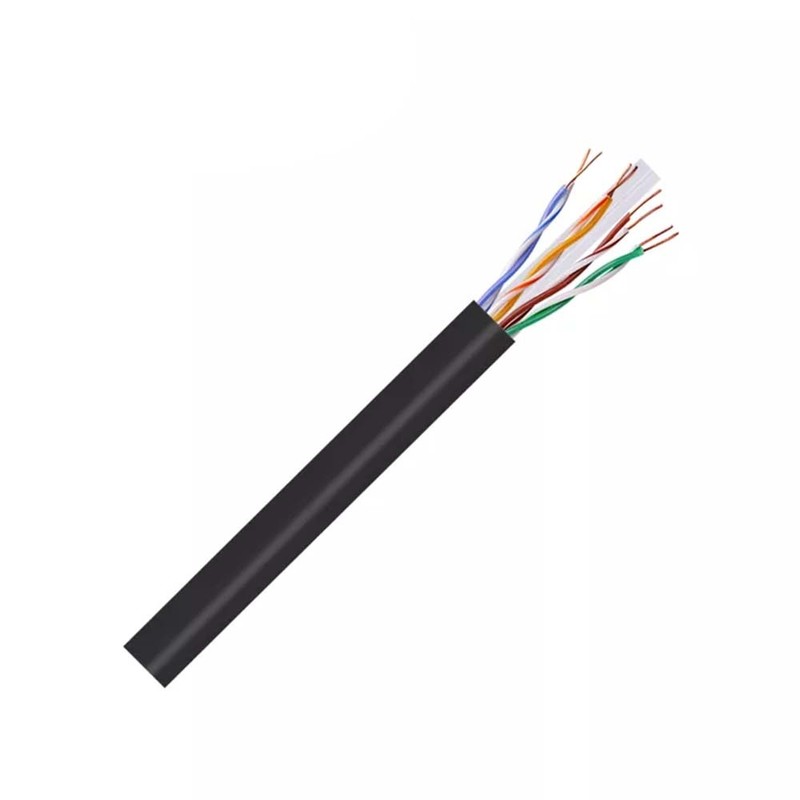

ITI-LINK's UTP CAT6 cable (Model: ITI-CT6OUT-026) is CPR Certified, featuring LSZH (Low Smoke Zero Halogen) jacket, 23AWG conductor, and 1000ft black length—engineered for safe, reliable Ethernet data transmission. As a premium CAT6 UTP cable, it's ideal for residential, commercial, and industrial use.
| Construction Item Description | Electrical Property | ||
|---|---|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| OD | 23 AWG | Resistance unbalance within a pair | ≤ 2% |
| Insulation Material | HDPE 8303 | Insulation Resistance at 20°C | >1500 MΩ / 100m |
| OD | 0.95 ± 0.01 mm | Mutual capacitance | 5600 pF / 100m MAX |
| Average THK | 0.22 mm | Capacitance unbalance pair to ground | ≤ 160 pF / 100m |
| Frequency (MHz) | Attenuation (Max) dB/100m | Propagation Delay (MAX) ns/100m | Return Loss (Min) dB | NEXT (Min) dB |
|---|---|---|---|---|
| 4 | 3.78 | 552 | 23.01 | 66.27 |
| 8 | 5.32 | 546.73 | 24.52 | 61.75 |
| 10 | 5.95 | 545.38 | 25 | 60.3 |
| 16 | 7.55 | 543 | 25 | 57.24 |
| 20 | 8.47 | 542.05 | 25 | 55.78 |
