| Brand Name: | ITI -LINK |
| Model Number: | ITI-CTF8-017 |
| MOQ: | 1000pcs |
| Price: | $50-$100 |
| Delivery Time: | 15-45 Days |
| Payment Terms: | T/T |

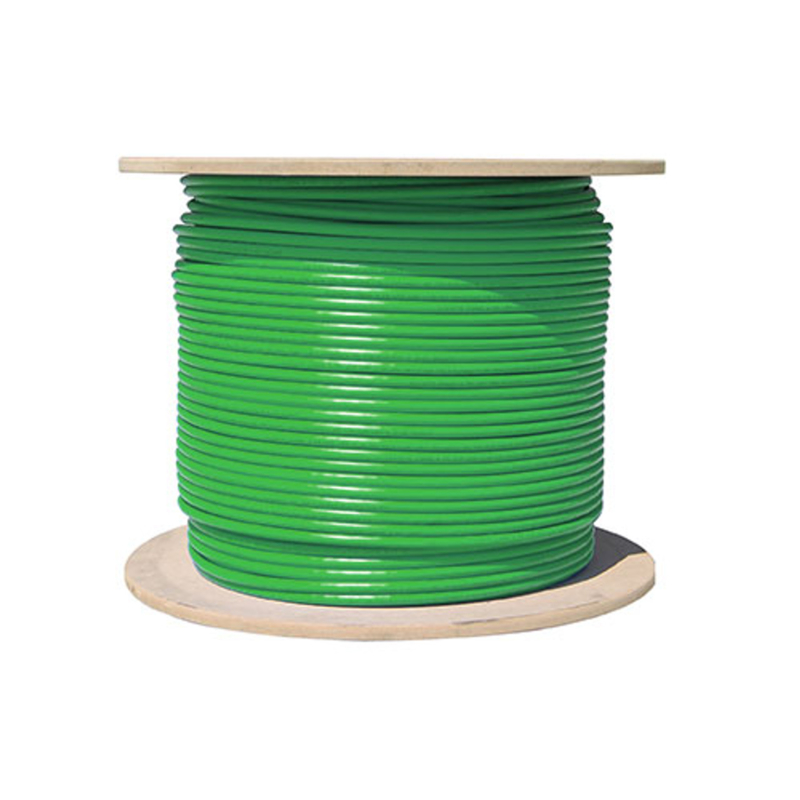

Bulk CAT8 FFTP 22AWG LSZH Cable 2000MHz High Stability for Data Centers
Product Description:
The ITI-CTF8-017 from ITI-LINK is a high performance CAT8 FFTP cable engineered for mission critical networks Combining 2000MHz bandwidth FFTP shielding and LSZH low smoke jackets this CAT8 product supports demanding applications and ensures safety in indoor installations.
Top Features
• 2000MHz high frequency for 40Gbps 100Gbps connections.
• FFTP shielded CAT8 construction for superior EMI suppression.
• 22AWG solid copper conductors for low attenuation and stable performance.
• LSZH low smoke zero halogen jacket improves safety compliance.
• Customizable lengths bulk reels and OEM labeling for large projects.
Recommended Scenarios
• Financial trading hubs low latency networks and exchange floors using CAT8 FFTP.
• Enterprise campus backbone and data aggregation points using FFTP CAT8 for noise immunity.
• AI training farms and GPU clusters requiring high throughput links with LSZH safety.
Technical Parameters:
| Product Description: Bulk CAT8 FFTP 22AWG LSZH Cable 2000MHz High Stability for Data Centers | ||||||
| Rev.: A | ECN Description: | |||||
| Construction Item Description | Electrical Property | |||||
|
Conductor |
Material |
Bare Solid Copper(elongation: 19-24%) |
Conductor Resistance at 20°C | ≤ 5.6 Ω / 100m | ||
| OD | 22 AWG | Resistance unbalance within a pair | ≤ 0.2% | |||
|
Insulation |
Material | PE Skin-Foam-Skin | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V |
>1500 MΩ / 100m |
||
| OD | 1.62 ±0.01 mm | Mutual capacitance | 5600 pF / 100m MAX | |||
| Average THK | 0.50 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |||
|
Color |
1p: white + 2 blue stripes & blue | Characteristic impedance at 100MHz | 100 ± 15 Ω | |||
|
2p: white + 2 orange stripes & orange |
Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min |
No breakdown |
||||
| 3p: white + 2 green stripes & green | Mechanical Property | |||||
| 4p: white + 2 brown stripes & brown |
insulation |
elongation before aging | ≥ 200% | |||
|
Pair Twist |
Lay & Direction |
1p: S=19.0 mm (28%) | tensile strength before aging | ≥10 MPa | ||
| 2p: S=23.5 mm (31%) | elongation after aging | ≥ 150% | ||||
| 3p: S=21.5 mm (33%) | tensile strength after aging | ≥8 MPa | ||||
| 4p: S=25.0 mm (36%) |
jacket |
elongation before aging | ≥ 125 % | |||
| OD | / | tensile strength before aging | ≥ 10 MPa | |||
|
Inner Assemble |
Lay | S=90 ± 5 mm | elongation after aging | ≥ 100 % | ||
| Direction | according to the drawing | tensile strength after aging | ≥ 8 MPa | |||
| OD | / | Packing | ||||
|
Filler |
Ripcord | / | NA | NA | ||
| Drain Wire | / | |||||
|
Pair Shield |
Shield | Pair Shield |
|
|||
| Construction | / | |||||
| Material | Polyester/Aluminium (PET/ALU) | |||||
| Coverage | ≥ 200% | |||||
|
Braid |
Material | AL-MG | ||||
| Coverage | ≥ 40% | |||||
|
Jacket |
Material | LSZH, 60P, -20~75℃ | ||||
| Hardness | 81± 3 | |||||
| OD | 8.6 ± 0.2 | |||||
| Average THK | 0.65 | |||||
|
Color |
Green | |||||
| Marking Color | black | |||||
| Marking |
according to the customer's requirements |
|||||
Applications:
• Low latency financial trading and HFT networks using CAT8 FFTP cables
• Data center rack to rack and switch uplinks FFTP CAT8 for interference free operation
• 5G base station indoor cabling and telecom equipment rooms using CAT8 LSZH for safety
