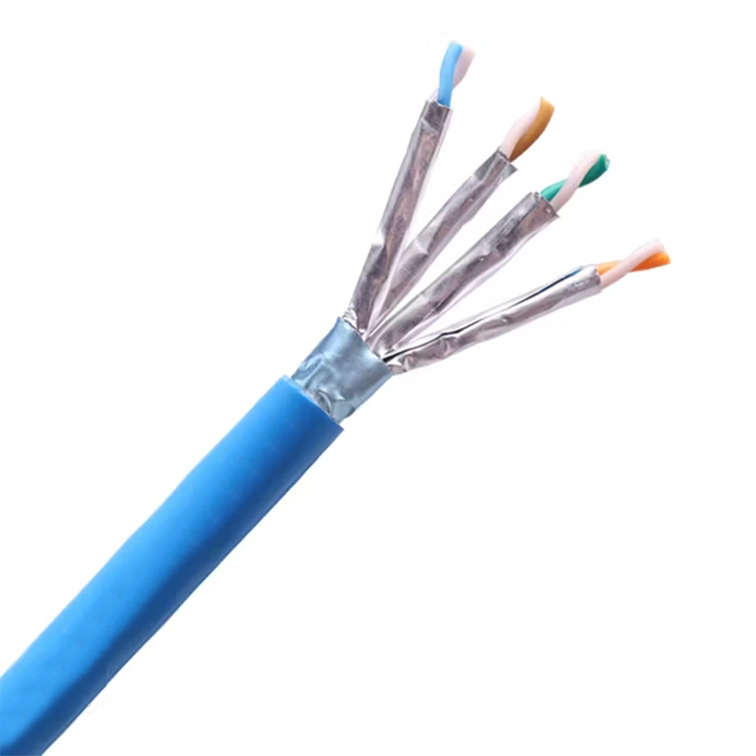

| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTF8-018 |
| MOQ: | 1000pcs |
| Price: | $50-$100 |
| Delivery Time: | 15-45 Days |
| Payment Terms: | T/T |
| Construction Item Description | Electrical Property | ||
|---|---|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 5.6 Ω / 100m |
| OD | 22 AWG | Resistance unbalance within a pair | ≤ 0.2% |
| Insulation Material | PE Skin-Foam-Skin | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m |
| OD | 1.62 ±0.01 mm | Mutual capacitance | 5600 pF / 100m MAX |
| Average THK | 0.50 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m |
| Color |
1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Dielectric Strength Test Voltage (cd/cd,cd/screen) | 1.00KV DC or 0.7 KV AC for 1 min | Result | No breakdown |
| Mechanical Property | |||
| Insulation elongation before aging | ≥ 200% | tensile strength before aging | ≥10 MPa |
| Pair Twist Lay & Direction |
1p: S=19.0 mm (28%) 2p: S=23.5 mm (31%) 3p: S=21.5 mm (33%) 4p: S=25.0 mm (36%) |
elongation after aging | ≥ 150% |
| Jacket OD | / | tensile strength after aging | ≥8 MPa |
| Inner Assemble Lay | S=90 ± 5 mm | elongation before aging | ≥ 150 % |
| Direction | according to the drawing | tensile strength before aging | ≥ 13.5 MPa |
| OD | / | elongation after aging | ≥ 125 % |
| Filler Ripcord | / | tensile strength after aging | ≥ 12.5 MPa |
| Pair Shield | |||
| Shield Construction | / | Material | Polyester/Aluminium (PET/ALU) |
| Coverage | ≥ 200% | Braid Material | AL-MG |
| Braid Coverage | ≥ 40% | ||
| Jacket | |||
| Material | PVC, 50P, -20~75℃ | Hardness | 81± 3 |
| OD | 8.6 ± 0.2 | Average THK | 0.65 |
| Color | Blue | Marking Color | black |
| Marking | according to the customer's requirements | ||
