| Brand Name: | ITI -LINK |
| Model Number: | ITI-C6AU-017 |
| MOQ: | 1000pcs |
| Price: | 50$-100$ |
| Delivery Time: | 15-45 Days |
| Payment Terms: | T/T |

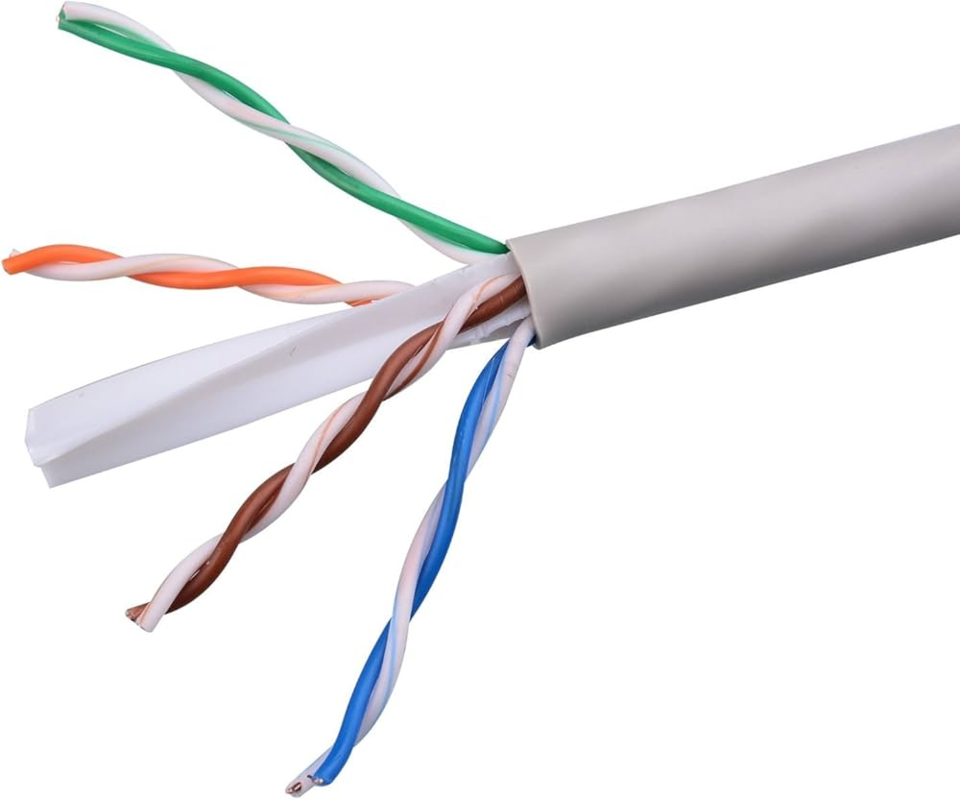

ITI-LINK ITI-C6AU-017 is a CAT6A UTP cable (500FT) delivering 10Gbps and 500MHz performance. LSZH white jacket meets CPR B2ca-s1a,d1,a1 for safe Data Center Cable & industrial network deployments. Solid oxygen-free copper ensures low attenuation.
| Construction Item Description | Electrical Properties |
|---|---|
| Conductor Material: Oxygen-Free Bare Solid Copper Elongation: ≥15% OD: 23AWG |
Single Conductor DC Resistance,Max,20℃: 9.5Ω/100m Conductor DC Resistance Imbalance,Max,20℃: ≤2% Pairs DC Resistance Imbalance,Max,20℃: ≤4% |
| Insulation Material: HDPE 8303 OD: 1.01±0.02 Average THK: 0.21mm |
Delay Skew,1-250MHz,Max: 45ns/100m Velocity of Propagation: 69% Insulation Resistance(CD/CD),DC100-500V,Min: 5000MΩ.km |
| Color 1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
Pair To Ground Capacitance Unbalance,Max,0.8KHz∕1KHz: 160pF/100m Dielectric Strength(CD/CD):2.5KV DC for 2 seconds or 1KV DC for 1 minute: No Breakdown |
| Pair Twist Lay & Direction: 1p:S=15.5mm(26%) 2p:S=11.0mm(19%) 3p:S=14.0mm(24%) 4p:S=12.5mm(21%) |
Mechanical Property insulation: elongation before aging: ≥ 300% tensile strength before aging: ≥16 MPa jacket: elongation before aging: ≥ 150 % tensile strength before aging: ≥10.5 MPa elongation after aging: ≥ 125 % tensile strength after aging: ≥ 10 MPa |
| Inner Assemble Lay: S=90±5mm Direction: according to the drawing Filler: 5.0±0.1mm x 0.5±0.01mm OD: / Filler Material: Ripcord Construction: 300D |
Packing Drum: NA |
| Outside Shield Shield: / Construction: / Material: / Coverage: / |
|
| Jacket Material: LSZH Hardness: 81A±3A OD: 7.0±0.5mm Average THK: 0.7mm+Gear Color: according to the customer's requirements Marking Color: according to the customer's requirements Marking: according to the customer's requirements |
