| Brand Name: | ITI -LINK |
| Model Number: | ITI-CTSF6A-021 |
| MOQ: | 1000pcs |
| Delivery Time: | 15-45 Days |
| Payment Terms: | T/T |
| Construction Item Description | Electrical Property |
|---|---|
| Conductor Material: Bare Solid Copper (elongation: 19-24%) OD: 23 AWG |
Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m Resistance unbalance within a pair: ≤ 2% |
| Insulation Material: PE Skin-Foam-Skin OD: 1.35 ±0.01 mm Average THK: 0.38 mm Color: Color-coded pairs with stripes |
Insulation Resistance at 20°C: >1500 MΩ / 100m Mutual capacitance: 5600 pF / 100m MAX Capacitance unbalance: ≤ 160 pF / 100m Characteristic impedance at 100MHz: 100 ± 15 Ω Dielectric Strength Test Voltage: 1.00KV DC or 0.7 KV AC for 1 min |
| Shield Pair Shield: Aluminium (PET/ALU) ≥ 115% coverage Braid: ɸ 0.12mm Aluminum-magnesium braided ≥ 40% coverage |
Mechanical Property Insulation elongation before aging: ≥ 300% Tensile strength before aging: ≥12 MPa Elongation after aging: ≥ 150% Tensile strength after aging: ≥10.5 MPa |

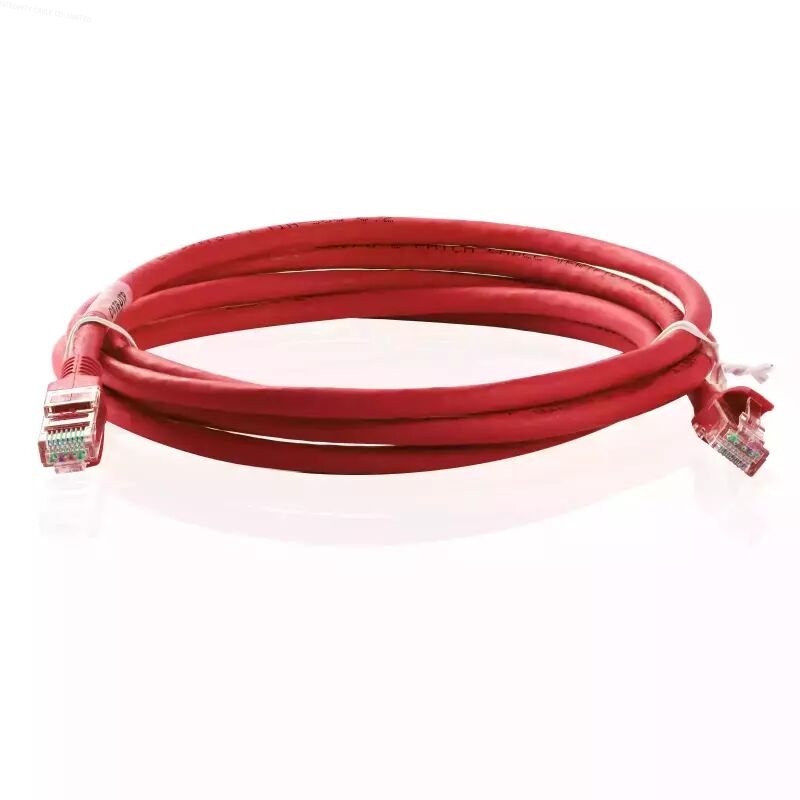

| Jacket Material: LSZH, 60P, -20~75℃ Hardness: 81± 3 OD: 7.5 ± 0.2 Average THK: 0.60 ~ 0.70 Color: Red |
Jacket elongation before aging: ≥ 125% Tensile strength before aging: ≥ 10 MPa Elongation after aging: ≥ 100% Tensile strength after aging: ≥ 8 MPa |
