| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT7SF-018 |
| MOQ: | 1000pcs |
| Price: | 50$-100$ |
| Delivery Time: | 15-45 Days |
| Payment Terms: | T/T |

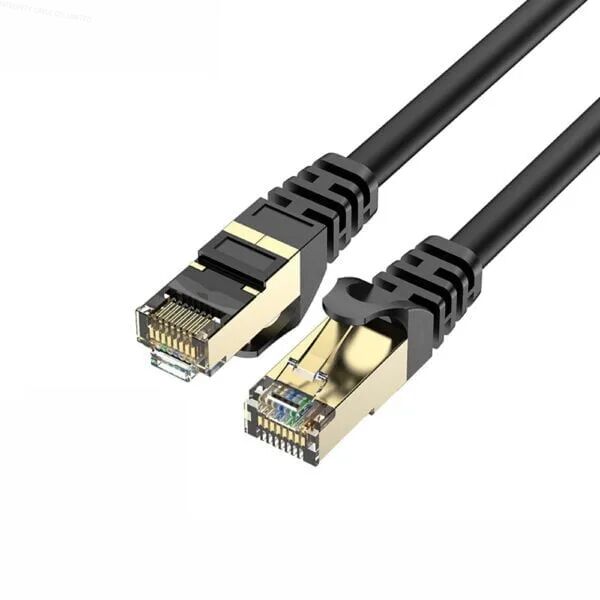

The ITI-LINK ITI-CT7SF-018 CAT7 SFTP Cable is a professional-grade shielded LAN cable developed for high-speed and interference-sensitive network deployments. Designed to meet modern Ethernet requirements, it provides reliable connectivity for industrial, commercial, and data center environments.
With a bandwidth of up to 600MHz, this CAT7 SFTP cable supports stable 10Gbps data transmission. Its superior shielding structure minimizes signal loss, crosstalk, and electromagnetic interference, ensuring consistent performance across long cable runs.
The cable is constructed using 23AWG solid oxygen-free copper conductors for optimal conductivity. Each twisted pair is individually foil-shielded, combined with an overall braided shield. The LSZH PVC/PE black jacket provides enhanced fire safety and mechanical durability.
| Construction Item Description | Electrical Property |
|---|---|
| Conductor Material: Bare Solid Copper (elongation: 19-24%) OD: 23 AWG |
Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m Resistance unbalance within a pair: ≤ 2% |
| Insulation Material: PE Skin-Foam-Skin OD: 1.33 ±0.01 mm Average THK: 0.37mm Color: White with colored stripes |
Insulation Resistance at 20°C: >1500 MΩ / 100m Mutual capacitance: 5600 pF / 100m MAX Capacitance unbalance pair to ground: ≤ 160 pF / 100m |
| Pair Twist Lay & Direction: Various lengths per pair |
Characteristic impedance at 100MHz: 100 ± 15 Ω Dielectric Strength Test: No breakdown |
| Mechanical Properties Insulation elongation before aging: ≥ 300% Tensile strength before aging: ≥16 MPa |
Elongation after aging: ≥ 150% Tensile strength after aging: ≥10.5 MPa |
| Shielding Pair Shield: Polyester/Aluminium (PET/ALU) Coverage: ≥ 115% Braid: Aluminum-magnesium braided Coverage: ≥ 40% |
Jacket elongation before aging: ≥ 125% Tensile strength before aging: ≥ 10 MPa |
| Jacket Material: LSZH, 60P, -20~75℃ Hardness: 81± 3 OD: 8.1 ± 0.2 Average THK: 0.55 ~ 0.65 Color: Black |
Elongation after aging: ≥ 100% Tensile strength after aging: ≥ 8 MPa |
