| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTF6A-018 |
| MOQ: | 1000pcs |
| Price: | 50$-100$ |
| Delivery Time: | 15-45 Days |
| Payment Terms: | T/T |

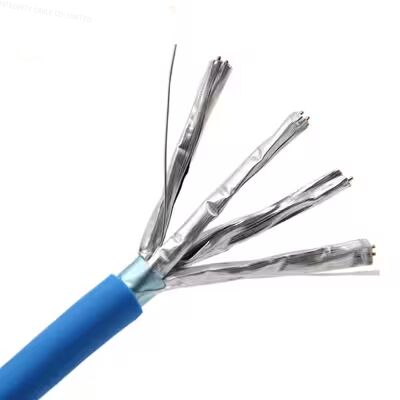

CAT6A FFTP Cable delivers reliable 10Gbps high speed performance with advanced dual-layer shielding (FFTP) and Solid Copper conductors to reduce interference and maintain stable LAN performance. The Blue jacket with LSZH low smoke zero halogen enhances safety in industrial, data center, and commercial environments. Ideal Shielded LAN Cable for demanding network applications.
| Construction Item Description | Electrical Property |
|---|---|
| Conductor Material: Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m |
| Conductor OD: 23AWG | Resistance unbalance within a pair: ≤ 2% |
| Insulation Material: PE Skin-Foam-Skin | Insulation Resistance at 20°C: >1500 MΩ / 100m |
| Insulation OD: 1.35 ±0.01 mm | Mutual capacitance: 5600 pF / 100m MAX |
| Average THK: 0.38 mm | Capacitance unbalance pair to ground: ≤ 160 pF / 100m |
| Pair Colors: White with blue/orange/green/brown stripes | Characteristic impedance at 100MHz: 100 ± 5 Ω |
| Pair Twist Lay: 19.0-27.0 mm | Dielectric Strength Test Voltage: 1.00KV DC or 0.7 KV AC for 1 min |
| Jacket Material: LSZH, 60P, -20~75℃ | Spark Test: 2000 ± 250VOC |
| Jacket OD: 7.5 ± 0.2 mm | |
| Jacket Color: Blue |
