| Brand Name: | ITI -LINK |
| Model Number: | ITI-CT5SF-030 |
| MOQ: | 1000pcs |
| Price: | 50$-100$ |
| Delivery Time: | 15-45 Days |
| Payment Terms: | T/T |

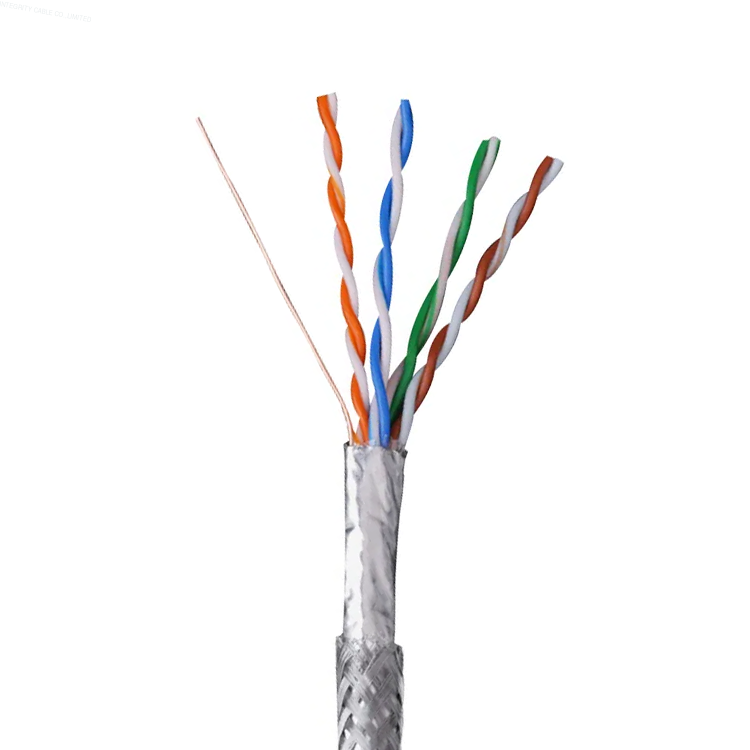

The ITI-LINK ITI-CT5SF-030 CAT5e SFTP Cable is a professional shielded LAN cable engineered for stable Gigabit networking. Built with 24AWG solid copper conductors, aluminum foil shielding, and braided protection, this CAT5e shielded Ethernet cable delivers reliable 100MHz / 1Gbps data transmission while minimizing EMI and crosstalk.
| Construction Item | Description | Electrical Property | Value |
|---|---|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Conductor OD | 24 AWG | Resistance unbalance within a pair | ≤ 2% |
| Insulation Material | HDPE 8303 | Insulation Resistance at 20°C | >1500 MΩ / 100m |
| Insulation OD | 1.05 ± 0.02 mm | Mutual capacitance | 5600 pF / 100m MAX |
| Jacket Material | LSZH, 60P, -20~75℃ | Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation Max (dB/100m) | Propagation Delay Max (ns/100m) | Return Loss Min (dB) | NEXT Min (dB) |
|---|---|---|---|---|
| 1 | 4.05 | 552 | 23.01 | 56.27 |
| 10 | 6.47 | 545.38 | 25 | 50.3 |
| 100 | 21.98 | 537.6 | 20.11 | 35.3 |
