| Tên thương hiệu: | ITI-LINK |
| Số mẫu: | ITI-CTSF7A-017 |
| MOQ: | 1000 chiếc |
| Giá cả: | 50$-100$ |
| Thời gian giao hàng: | 15-45 ngày |
| Điều khoản thanh toán: | T/T |

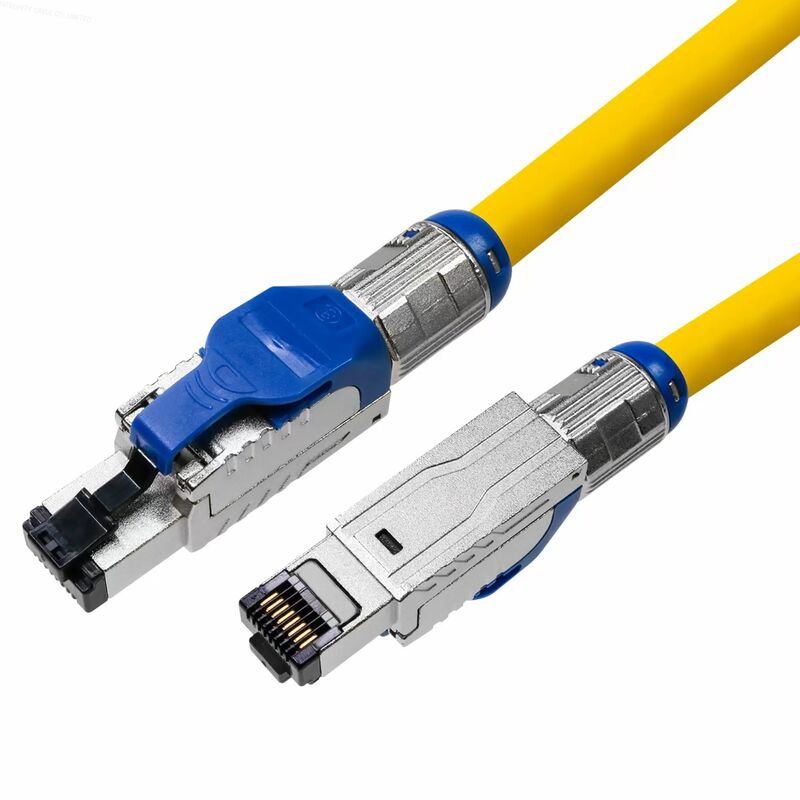

ITI-LINK CAT7A SFTP Cable -- shielded LAN cable engineered for mission-critical networks. 50m reel, 23AWG solid copper, LSZH jacket, 1000MHz bandwidth. Perfect for data centers, 5G sites and industrial networks needing robust 10Gbps performance.
| Construction Item Description | Electrical Property |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Material | PE Skin-Foam-Skin |
| Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown |
Industrial network backbones, factory automation (PLC/SCADA links), 5G base station backhaul, and power distribution control rooms where strong EMI protection and LSZH safety are essential.
