| Nama merek: | ITI-LINK |
| Nomor Model: | ITI-CTF8-019 |
| MOQ: | 1000 buah |
| Harga: | 50$-100$ |
| Waktu Pengiriman: | 15-45 hari |
| Ketentuan Pembayaran: | T/T |
| Construction Item Description | Electrical Property |
|---|---|

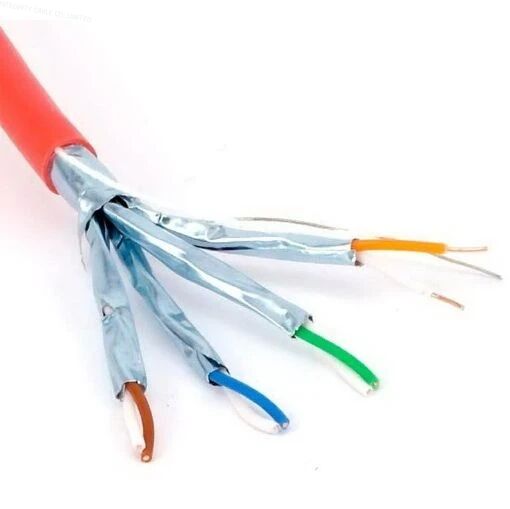

| Conductor Material: Bare Solid Copper (elongation: 19-24%) OD: 22 AWG |
Conductor Resistance at 20°C: ≤ 5.6 Ω / 100m Resistance unbalance within a pair: ≤ 0.2% |
| Insulation Material: PE Skin-Foam-Skin OD: 1.62 ±0.01 mm Average THK: 0.50 mm Color: 1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V: >1500 MΩ / 100m Mutual capacitance: 5600 pF / 100m MAX Capacitance unbalance pair to ground at 800Hz or 1 kHz: ≤ 160 pF / 100m Characteristic impedance at 100MHz: 100 ± 15 Ω Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min: No breakdown |
| Pair Twist Lay & Direction: 1p: S=19.0 mm (28%) 2p: S=23.5 mm (31%) 3p: S=21.5 mm (33%) 4p: S=25.0 mm (36%) |
Mechanical Property Insulation: Elongation before aging: ≥ 200% Tensile strength before aging: ≥10 MPa Elongation after aging: ≥ 150% Tensile strength after aging: ≥8 MPa |
| Inner Assemble Lay: S=90 ± 5 mm Direction: according to the drawing OD: / |
Jacket: Elongation before aging: ≥ 150 % Tensile strength before aging: ≥ 13.5 MPa Elongation after aging: ≥ 125 % Tensile strength after aging: ≥ 12.5 MPa |
| Pair Shield Shield: Pair Shield Material: Polyester/Aluminium (PET/ALU) Coverage: ≥ 200% |
Braid Material: AL-MG Coverage: ≥ 40% |
| Jacket Material: PVC, 50P, -20~75℃ Hardness: 81± 3 OD: 8.6 ± 0.2 Average THK: 0.65 Color: orange Marking Color: black Marking: according to the customer's requirements |
